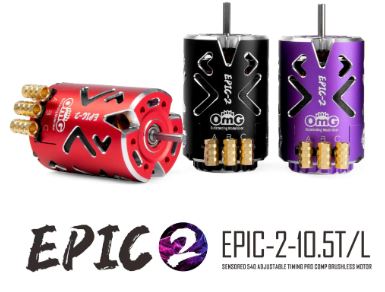

OmG EPIC-2 Sensored Brushless Timing-Adjustable Top Motor for 1/10 drifting car
FEATURES
✅0.2mm silicon steel stator laminations
✅N38UH neodym magnet as rotor material
✅Japan imported heat resistant ball bearings by NMB
✅Special designed internal mounted fan
✅Precise hall sensors
✅High Purity copper windings
✅2pcs Sensor Ports
PRODUCT PARAMETERS
KV(RPM/Volt): 3750
Applicable voltage (V):7.4-11.1V (2-3S)
No-load current:1.5A
Resistance:0.0155
Continuous current(A):65A
Continuous power(W):MAX550
Efficiency (%):93
Poles:2
Mounting hole depth:<5mm
Rotor:Φ12.3XΦ7.2x24.2mm
Length of extend shaft:14mm
Diameter length(mm):Φ35.8X54.8mm
Operational temperature:<150℃
Shaft diameter(mm):3.175
Weight:172g
