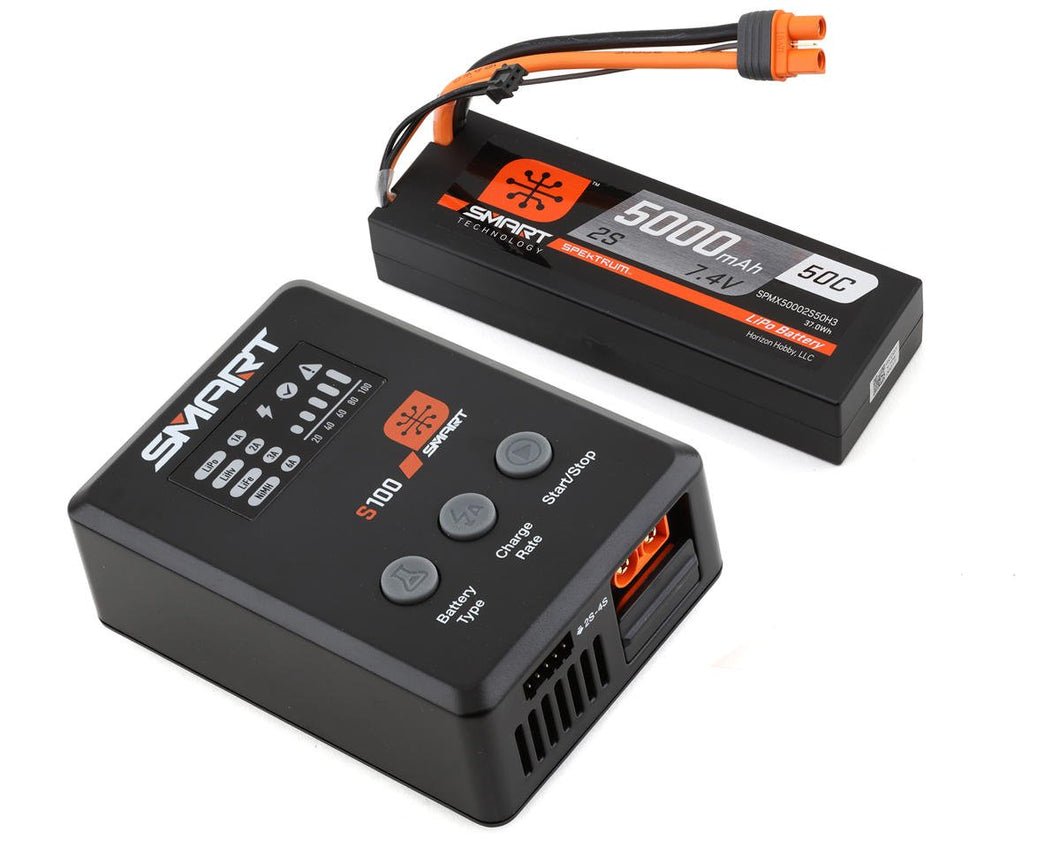

Bundle Overview:
The S100 Smart USB-C Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and automatically begins safe, correct charging when the charge lead is connected. Balancing Smart batteries is just as simple. The S100 charger will balance your Smart G2 packs through the same single IC connection used for charging. No separate, confusing balance leads are required. Powered by an included USB-C cable, the S100 is a convenient charging solution for those new to RC. All you need is a common USB-C power adapter, and you're ready to go.
The Spektrum 2S Smart LiPo Hard Case 50C Battery Pack with IC3 Connector. Spektrum Smart technology LiPo Batteries practically take care of themselves. When combined with the Spektrum Smart Battery Charger, the unique parameters, history of the battery and more are all available the instant it’s connected. Charging a Smart Battery is as easy as it gets, plus Smart LiPo battery packs are programmable to meet your exact charging needs. But the crowning feature of a Spektrum Smart LiPo battery is that it can be programmed to safely self-discharge to storage condition!
Features:
- Charger:
- Advanced, user-friendly Smart charging technology that fits into any hobby budget
- Meter display shows available wattage on startup, making it easy to know how much power your USB power supply can deliver
- Delivers up to 100W of charging power with appropriately rated power supply and USB-C cable
- Charges AND balances Smart G2 batteries with one simple IC3 or IC5 connection — no separate balance lead needed
- Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected
- Charges virtually any RC LiPo battery (use Smart batteries to benefit from all charger features)
- Smart software tracks and stores numerous smart battery data
- Includes IC3 and IC5 charging output ports — eliminating the need for a separate IC3 or IC5 adapter to charge Spektrum Smart batteries
- Charges up to 4S LiPo/LiFe/LiHV batteries
- Includes an efficient, low-noise cooling fan
- Sleek, sturdy case fits well on a workbench and in pit or field bags
- IC3 and IC5 connectors are backward compatible with EC3™ and EC5™ connectors
- Battery:
- Integrated Microchip Stores Unique Parameters for Each Battery
- IC3 and IC5 Connectors are Compatible with EC3 and EC5
- Save Time and Hassle, while Improving Battery Life
- Smart Discharge Allows Batteries to Automatically Discharge to a Safe Voltage
Specifications:
- Charger:
- Input Voltage: DC 5.0 - 20.0V, USB-C
- Connector Type: IC3, IC5
- Battery Balance Connector: 2S-4S JST-XH
- Battery Type: LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), Smart NiMH (1.2V per cell)
- Maximum Charge Rate: 1-6A User Selectable
- Length: 3.86" (98 mm)
- Width: 2.83" (72 mm)
- Height: 1.42" (36 mm)
- Battery:
- Nominal Voltage: 7.4V (2S)
- Capacity: 5000mAh
- Maximum Charge Rate: 3C (15A)
- Discharge Rate:
- Continuous: 50C
- Watt Hours: 37Wh
- Connector:
- Battery: IC3
- Balance: XH
- Dimensions: 5.4x1.8x0.98in (137x45.7x24.8mm)
- Weight: 9.3oz (265g)
Includes
- (1) S100 1x100W USB-C Smart Charger
- (1) 2S 5000mAh Smart 50C LiPo Battery
- (1) 60W USB-C Cable to USB-C Cable
- (1) Product Instruction Manual
